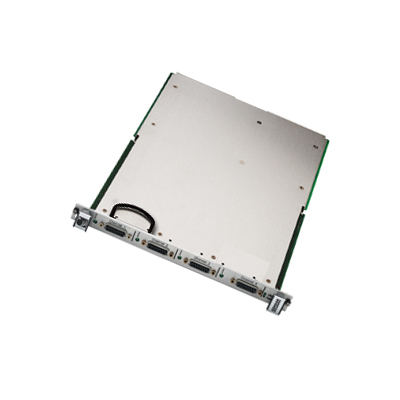

QVXI2-1553X

1, 2 or 4 channel MIL-STD-1553 VXI Module

The QVXI-1553X provides new levels of performance and flexibility for MIL-STD-1553A and B Notice II on a C-size card. Available in commercial, industrial and conductively cooled versions with one, two or four dual-redundant channels, the QVXI-1553X includes “abstract” API (Application Programming Interface) software that reduces application development time. Standard features include selectable transformer or direct coupling, 1 Mbyte of RAM per channel, 45-bit message time-tagging, triggers, extensive BC & RT link-list structures, error detection/injection, advanced BC functionality, automatic/manual RT Status Bit and Mode Code responses

  • • Multi-function and single-function versions
  • • High-level API for Windows XP, 2000, Me, NT, 98, 95, VxWorks, Linux
  • • Simultaneous Bus Controller, 31 Remote Terminals and Bus Monitor
  • • 1, 2, or 4 dual-redundant MIL-STD-1553 A/B Notice II channels

FORM FACTOR
VXI

1553 # CHANNELS
1 to 4

OPERATING MODE
Single/Multi-Function

VARIABLE VOLTAGE
Yes

APPLICATION
Lab, Simulation, Test

TEMP RANGE
Commercial

ANALYZER
BusTools

IRIG TIME CODE OPTION
Yes

Request a Quote
