Mil Standard Products
For demanding application needs, our 1553 product line combines high-speed encoding/decoding, intelligent protocol processing and advanced board-level functionality.
Bus Analysis, Simulation and Data Monitoring/Logging Solution
RPCIE-1553 High Density PCI Express Interface
QPM-1553-TB3 Interface
| Product Name | Model | Form Factor | 1553 # Channel | I/O | Operating Mode | Options | |
|---|---|---|---|---|---|---|---|

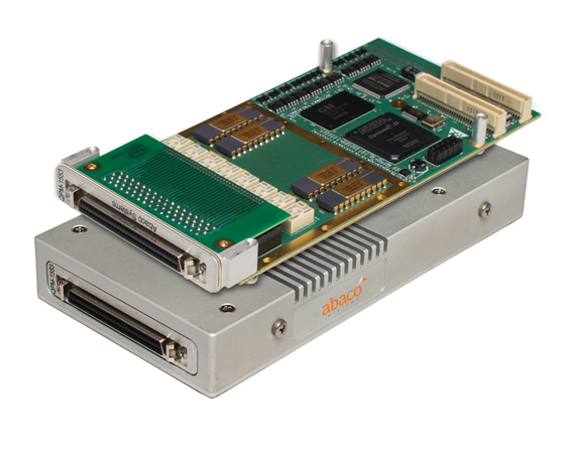

 | Thunderbolt 1553 | QPM-1553-TB3 | Thunderbolt 3 | 1-4 Dual Redundant | Discretes, Address Lines & Triggers | Single/Dual/Multi-Function | IRIG, VV |
 | PCIE 1553 | RPCIE-(G2)-1553 | PCI Express | 1-4 Dual Redundant | Discretes, Address Lines & Triggers | Single/Dual/Multi-Function | IRIG, VV |

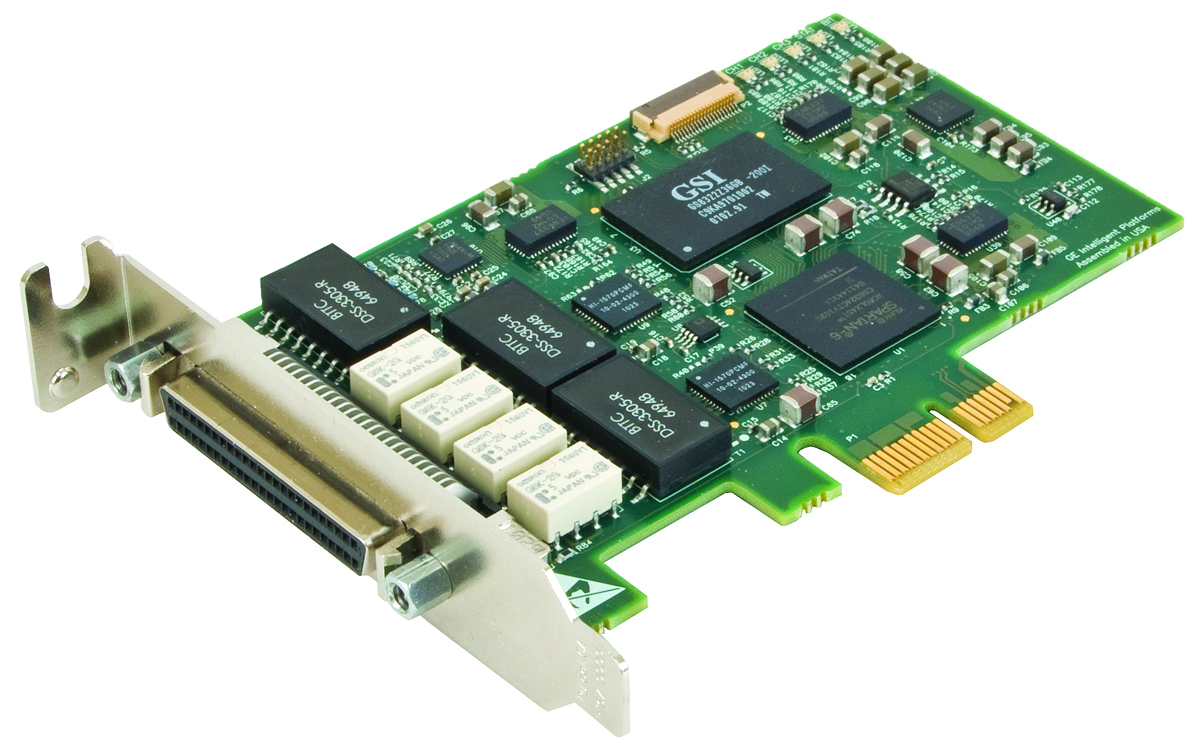

 | PCIE Low-Profile 1553 | R15-LPCIE-(G2) | PCIe-Low Profile | 1 or 2 Dual Redundant | Discretes, Address Lines & Triggers | Single/Dual/Multi-Function | IRIG, VV |

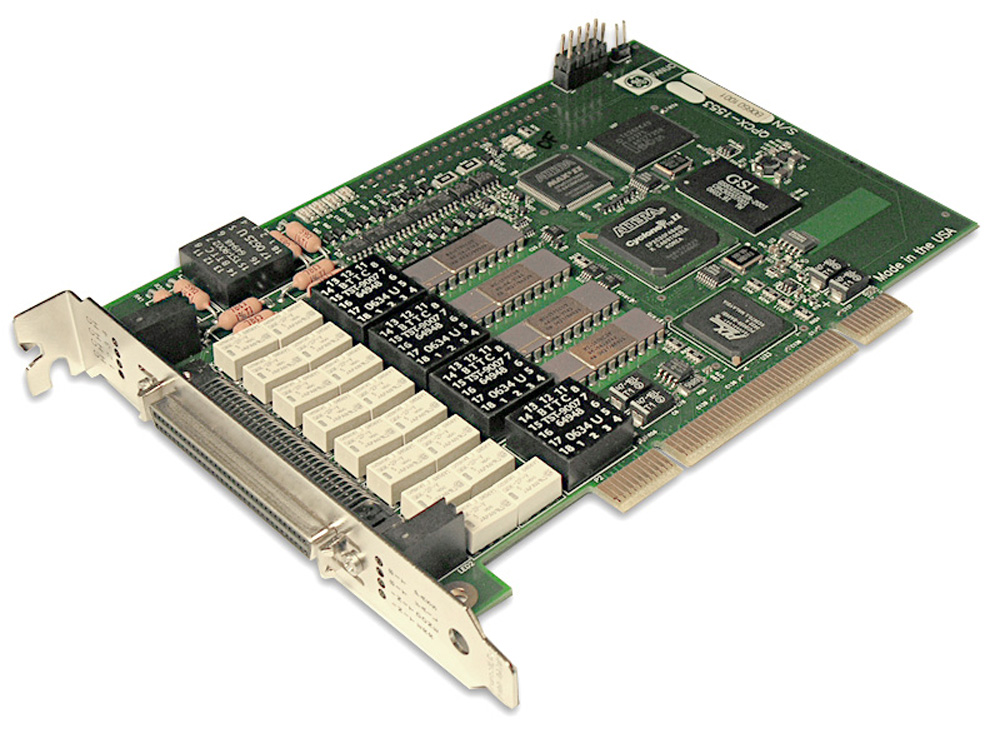

 | PCI 1553 | QPCX-1553 | PCI | 1-4 Dual Redundant | Discretes, Address Lines & Triggers | Single/Dual/Multi-Function | IRIG, VV |

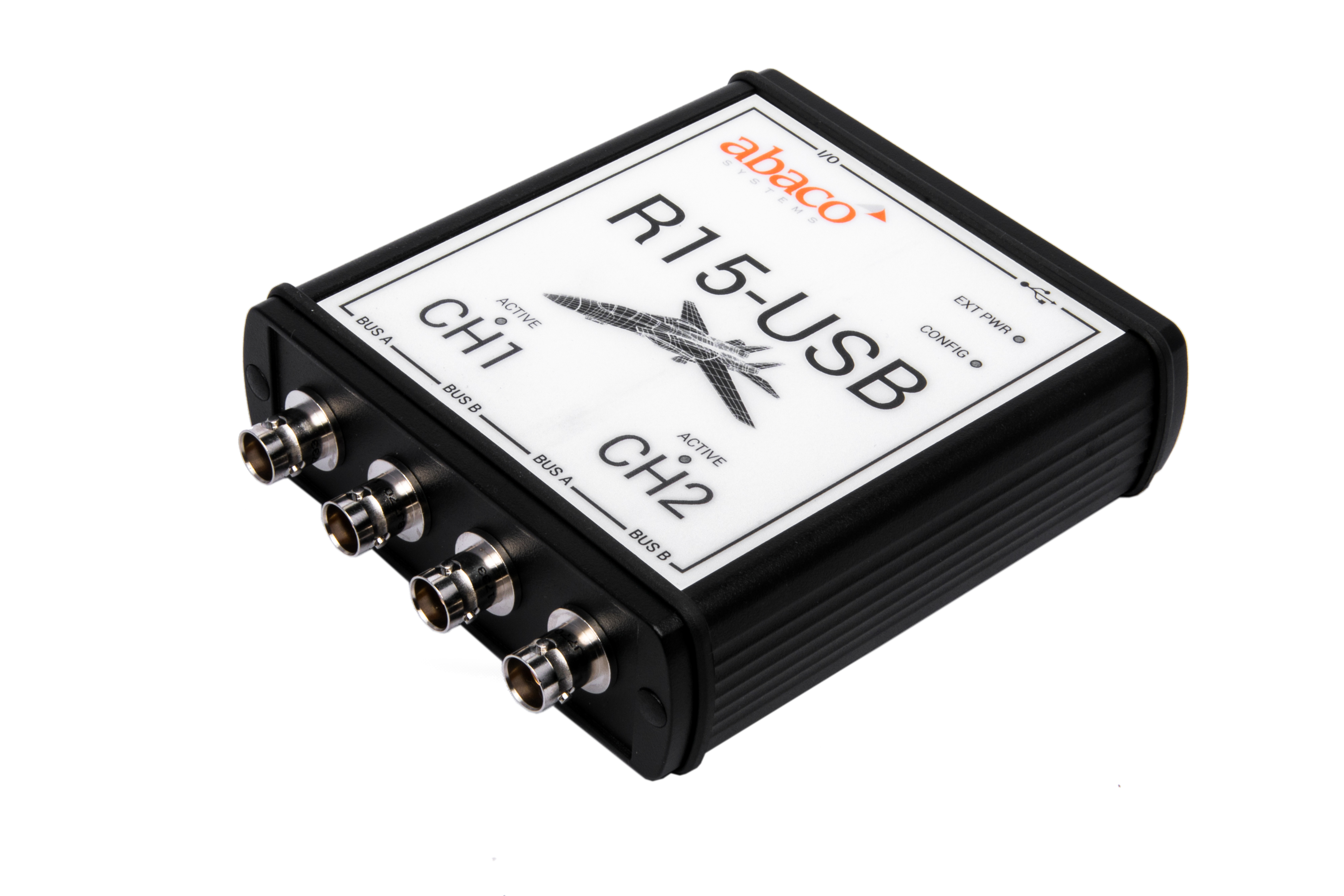

 | USB 1553 | R15-USB | USB | 1 or 2 Dual Redundant | Discretes, Address Lines & Triggers | Dual/Multi-Function | IRIG |

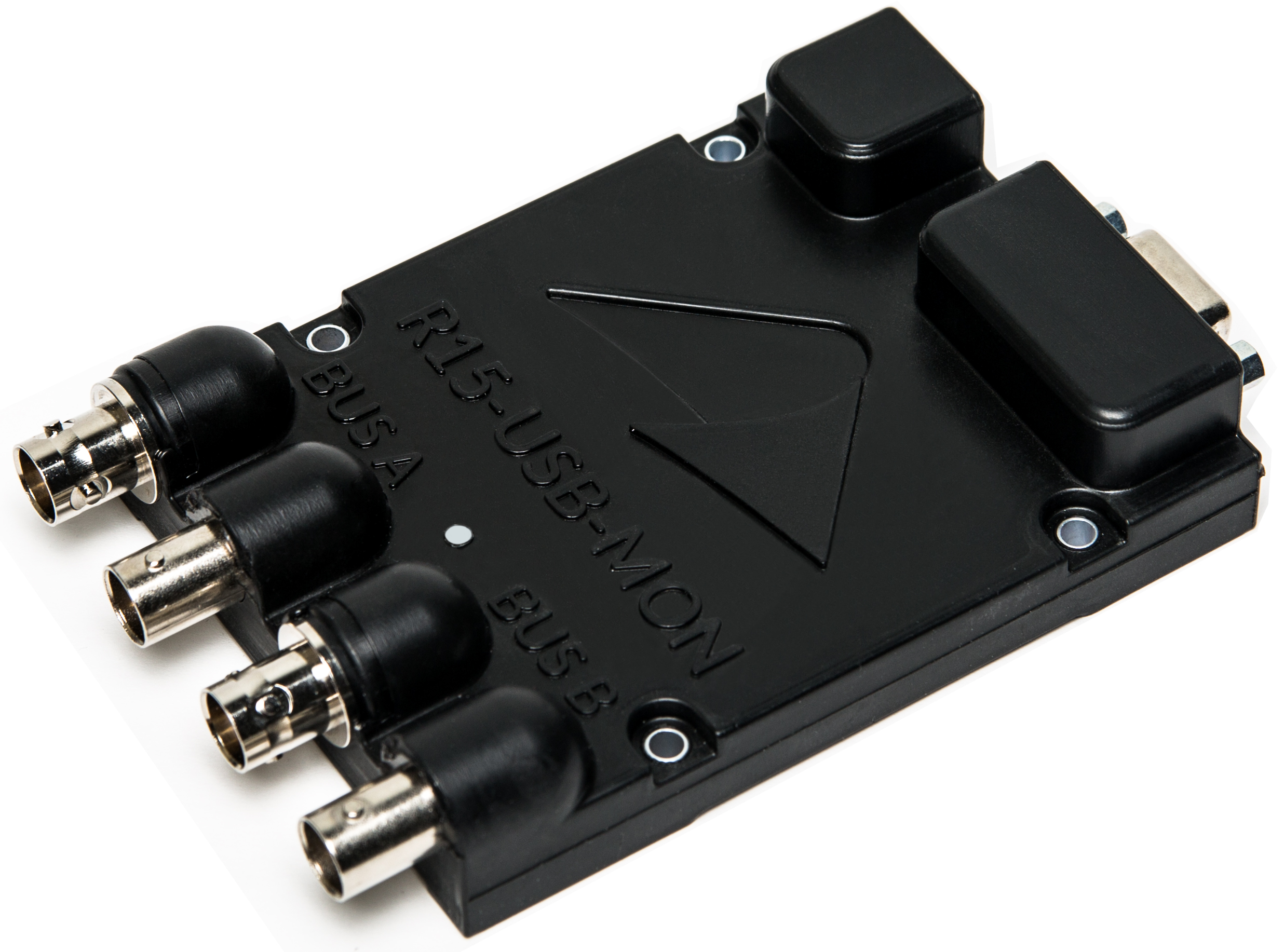

 | USB-Mon 1553 | BT3-USB-MON | USB | 1 Dual Rendundant | Scope Ports & Triggers | BusTools Monitor ONLY | IRIG |

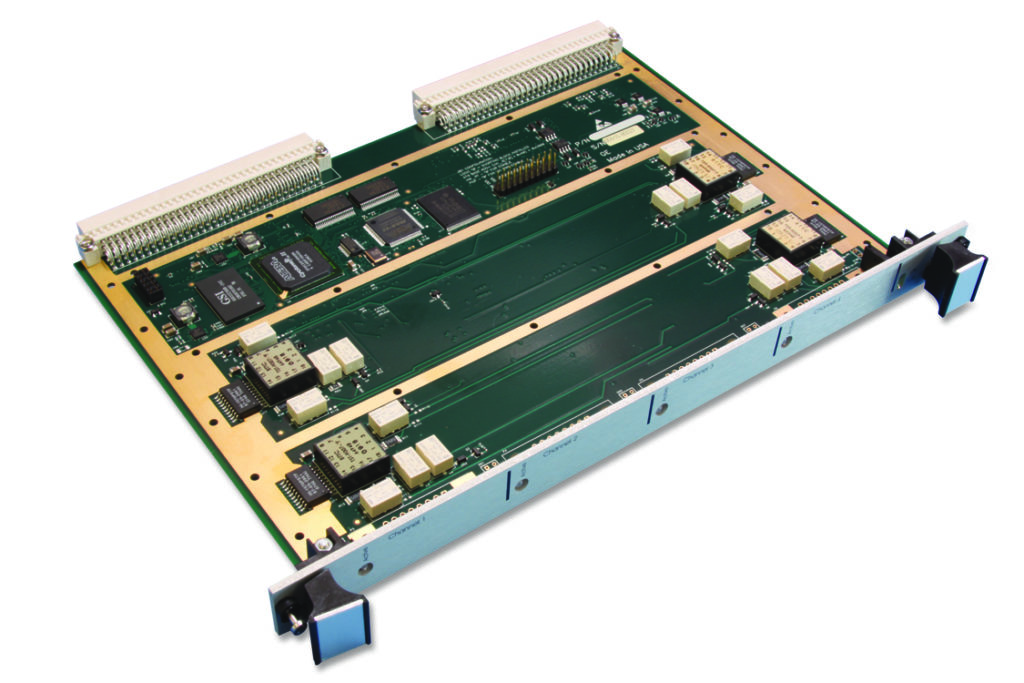

 | VME 6U 1553 | RQVME2-1553 | VME 6U | 1-4 Dual Redundant | Discretes, Address Lines & Triggers | Dual/Multi-Function | IRIG, VV |
 | Express Card 1553 | R15-EC | Express Card | 1 or 2 Dual Redundant | Discretes, Address Lines & Triggers | Single/Dual/Multi-Function | IRIG |

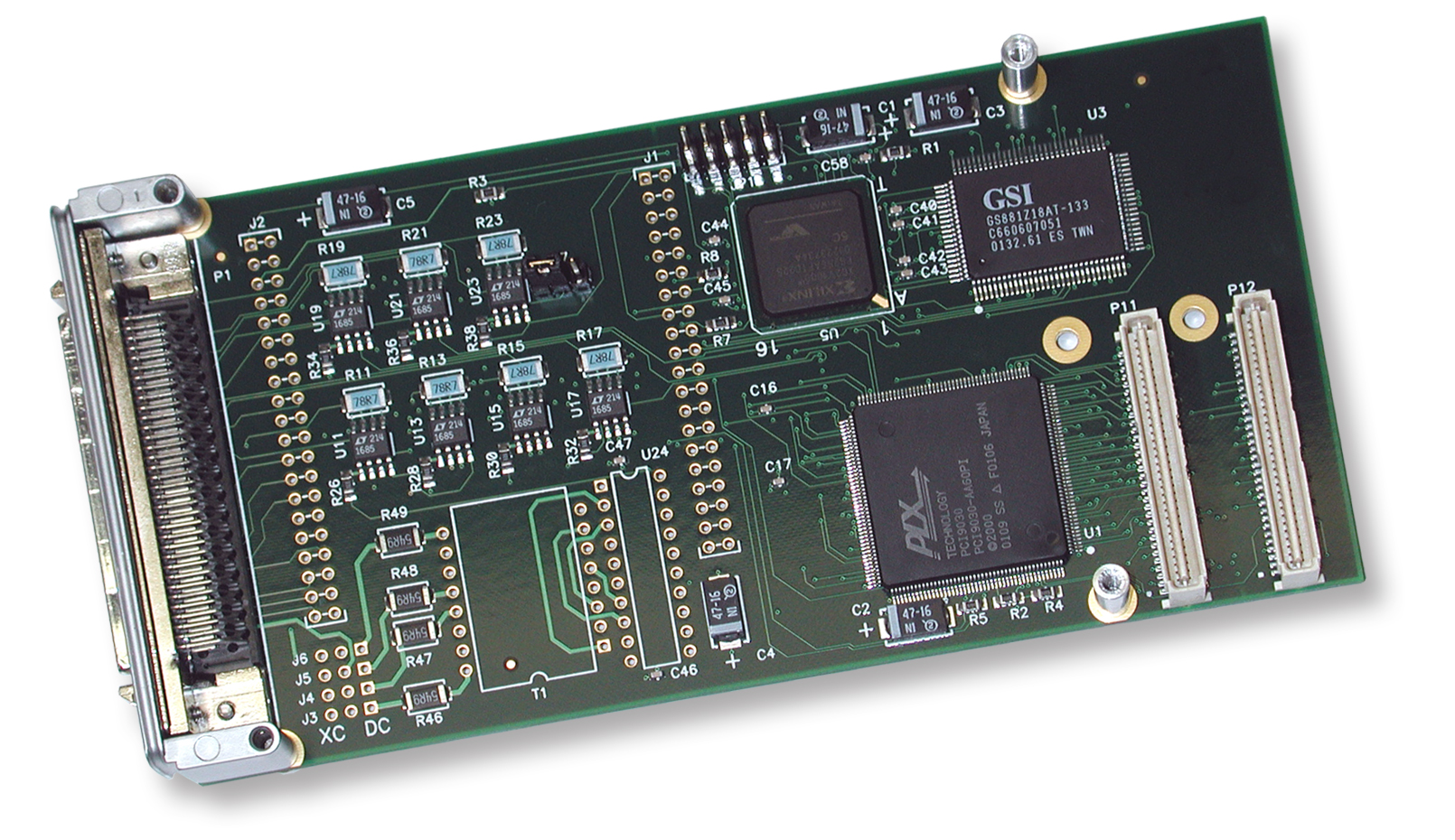

 | PCIE 10MB 1553 | PMC-MMSI | PCIE, PCI, PMC | 12 Lines | 10MB Single Function: 12 Line BC with C-Mon, OR 12 RTs OR Dual Mode Monitor | IRIG | |

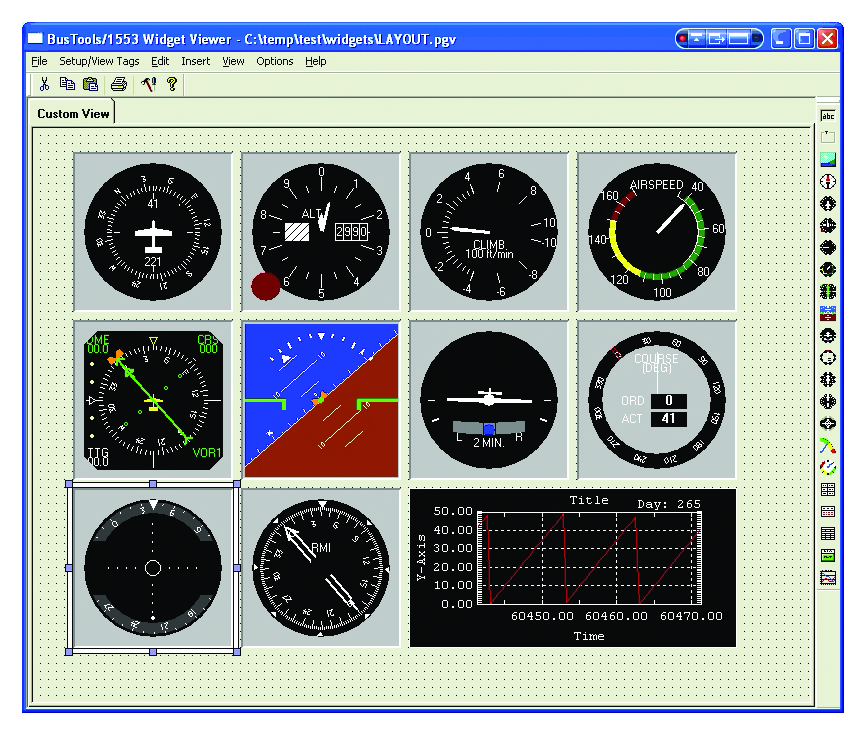

 | 1553 Analyzer Software | BusTools-1553 BusTools Software Analyzer | Thunderbolt, PCIE, PCI, USB, VME, VXI, cPCI, Express Card, PCMCIA | 12 Dual Redundant | Discretes, Address Lines & Triggers | BC, 31 RTs, and Monitor | IRIG, VV |
Discontinued Mil Standard Products
Dualos and Abaco cover a rich history of data bus analyzers and interfaces including SBS Technologies, Condor Engineering, GE FANUC, GE Embedded Systems, Abaco and now Dualos as Abaco’s Avionics Test and Simulation products sales and support partner.
To help those projects and programs going through refresh, we listed the obsolete SBS, Condor Engineering, GE, and Abaco interfaces that have been manufactured over the years. If you find your Mil-Std-1553, ARINC 664, ARINC 429, ARINC 615 or other protocols and interfaces below, we have transition plans and papers. Please contact us to help you transition to a newer data bus analyzer or interface.
| Product Name | Description |
|---|---|
| 1553-3CP3 | Single function, 1 to 3 channel, dual redundant MIL-STD-1553 interface to the PMC mezzanine. |
| 1553-PCI3 | Flexible dual redundant MIL-STD-1553 interface to the PCI backplane. |
| 1553-PMC3 | Flexible conduction-cooled interface for the PMC mezzanine. |
| ABI-cPCI3U | MIL-STD-1553 Programmable interface to cPCI-3U system. Full function. Single channel. IRIG available. |
| ABI-cPCI3U2 | MIL-STD-1553 programmable interface to cPCI backplanes. Version 2. Full function. One to four channels available. IRIG available. Extended temperature and conduction cooled versions available |
| ABI-cPCI6U | MIL-STD-1553 programmable lnterface for cPCI backplanes. Full function. One or two channels available. IRIG available. |
| ABI-PC104-1 | MIL-STD-1553 interface to PC104 system. Full function. Single channel. IRIG available. |
| ABI-PC104-2 | MIL-STD-1553 interface to PC/104 system. Full function. Two channel. IRIG available. |
| ABI-PC3 | MIL-STD-1553 programmable interface for ISA backplanes. Full function. Single or dual channel. IRIG available. Extended temperature range available |
| ABI-PCI | MIL-STD-1553 programmable interface for PCI backplane. Full function. Dual channel. IRIG available. |
| ABI-PCMCIA2 (PCM2) | MIL-STD-1553 programmable interface in a PCMCIA form factor. Internal transceiver with strain relief. Full function. Single channel. |
| ABI-PMC | MIL-STD-1553 programmable interface for the PMC mezzanine. Full function. Single channel. IRIG available. |
| ABI-PMC-F16-1 | MIL-STD-1553 programmable interface for the F16 PMC mezzanine. Full function. Single channel. |
| ABI-PMC2 | MIL-STD-1553 programmable interface for the PMC mezzanine, version 2. Full function. One or two channels. Available in commercial, extended temperature, and conduction cooled versions. IRIG available. |
| ABI-V5-1/B2 | MIL-STD-1553 programmable interface for VMEbus, version 5 with B2 Protocol. Full function. Single channel. IRIG available. |
| ABI-V6-1/2 | MIL-STD-1553 programmable interface for VMEbus, version 6. Full function. One or two channels. IRIG available. Commercial and extended temperature versions available. |
| ABI-V6-3/4 | MIL-STD-1553 programmable interface for VMEbus, version 6. Full function. Three or four channels. IRIG available. |
| ABI-V6CC | MIL-STD-1553 programmable interface for VMEbus, version 6. Conduction cooled. Full function. One or two channels. IRIG available. |
| ASF-cPCI3U | MIL-STD-1553 programmable interface to cPCI backplanes. Single function. Single channel. IRIG available. |
| ASF-cPCI3U2 | MIL-STD-1553 programmable interface to cPCI backplanes, version 2. Single function. One to four channels. IRIG available. Extended temperature range available. |
| ASF-cPCI6U | MIL-STD-1553 programmable interface to cPCI backplanes. Single function. One or two channels. IRIG available. |
| ASF-PC104-1 | MIL-STD-1553 programmable interface to PC104 backplanes. Extended temperature. Single function. Single channel. IRIG available. |
| ASF-PC104-2 | MIL-STD-1553 interface to PC104 system. Single function. Dual channel. IRIG available. |
| ASF-PC3 | MIL-STD-1553 programmable interface to ISA system. Single function. Single channel. IRIG available. Commercial and extended temperature ranges available. |
| ASF-PCI | MIL-STD-1553 programmable interface to PCI backplanes. Single function. Dual channel. Multiple RT and IRIG options available. |
| ASF-PCMCIA2 (PCM2) | MIL-STD-1553 programmable interface in a PCMCIA form factor. Internal transceiver with strain relief. Single function. Single channel. |
| ASF-PMC | MIL-STD-1553 programmable interface for PMC mezzanine. Single function. One channel. IRIG available. |
| ASF-PMC2 | MIL-STD-1553 programmable interface for PMC mezzanine, version 2. Single function. One or two channels. IRIG available. Commercial and extended temperature and conduction cooled versions available. |
| ASF-V6-1/2 | MIL-STD-1553 programmable interface to VMEbus system, version 6. Single function. One or two channels. Multiple RT and IRIG options available. Extended temperature version available. |
| ASF-V6-3/4 | MIL-STD-1553 programmable interface to VMEbus system, version 6. Single function. Three or four channels. IRIG available. |
| ASF-V6CC | MIL-STD-1553 programmable interface to VMEbus system, version 6. Conduction Cooled. Single Function. One or two channels. IRIG available. |
| CFM-1553 (CORE-1553) Protocol IP | End Use License for K-1553-FM. |
| CMS-1553 (CORE-1553) Protocol IP | CORE-1553 Maintenance & Support (additional year) |
| CPCI-1553 | The CPCI-1553 provides the highest level of performance and flexibility for the MIL-STD-1553A/B protocol on the CompactPCI bus. |
| CRT-1553 (CORE-1553) Protocol IP | End Use License for K-1553-R. |
| FC-GSK (FlightCORE-1553) Protocol IP | Get Started Kit for single channel, dual-redundant, simultaneous BC/single RT/BM, FlightCORE-1553. Includes five (5) Personality Modules and Software Distribution CD |
| FC-SMF (FlightCORE-1553) Protocol IP | MIL-STD-1553B single channel, dual-redundant, simultaneous BC/single RT/BM, 1 Mbps FlightCORE-1553 Includes five (5) Personality Modules. |
| IP-D1553 | The IP-D1553 is the latest generation of GE Intelligent Platform's IP Module support for MIL-STD-1553A/B. |
| ISA-1553 | The ISA-1553 provides the highest level of performance and flexibility for MIL-STD-1553A/B on the PC/AT bus (ISA). |
| K-1553-FM (CORE-1553) Protocol IP | CORE-1553 BC/mRT/Mon Integration Kit and 25 CFM-1553 End Use License |
| K-1553-R (CORE-1553) Protocol IP | CORE-1553 sRT/Mon Integration Kit and 25 CRT-1553 End Use Licenses. |
| MS1553PC104 | The MS1553PC104 board offers powerful and economical solutions for interfacing to MIL-STD-1553B avionics data buses from the PC/104 bus |
| P-10SF | The P-10SF offers one or two channels of dual-redundant 10Mbit 1553 Notice 2 protocol using RS-485 transceivers. |
| PCC-D1553 | The PCC-D1553 provides the highest level of performance and density for MIL-STD-1553A/B in a Type II PCMCIA (PC Card) form factor. |
| PCCARD-1553 | The PCCARD-1553 provides the highest level of performance and flexibility for MIL-STD-1553A/B in the Type II PCMCIA (PC Card) form factor. |
| PCI-1553 | The PCI-1553 provides the highest level of performance and flexibility for MIL-STD-1553A/B or MacAir protocols on the PCI bus. |
| PMC-1553 | The PMC-1553 provides the highest level of performance and flexibility for MIL-STD-1553A/B on the PMC bus (PCI mezzanine card - 5V Only). |
| PMC1553E | PMC1553E is a single or dual channel MIL-STD-1553B mezzanine suitable for use in a wide range of embedded applications in both air- and conduction-cooled environments. Performance has been significantly enhanced over previous generations, with 66 MHx PCI |
| Q104-1553 Interface | Q104-1553 and Q104P-1553 for MIL-STD-1553A/B Notice II PC/104 (ISA backplane) and PC/104-Plus (PCI backplane) form factors. |
| QCP-1553 Interface | The QCP-1553 provides optimum performance and flexibility for MIL-STD-1553A/B Notice II in a CompactPCI form factor. |
| QPCI-1553 Interface | GE Intelligent Platform's QPCI-1553 provides new levels of performance and flexibility for MIL-STD-1553A/B Notice II for PCI backplane form factor |
| QPMC-1553 Interface | The QPMC-1553 provides the highest level of performance, flexibility and interface density for MIL-STD-1553A/B on a PMC (PCI Mezzanine Card) module. |
| QVME-1553 Interface | The QVME-1553 provides new levels of performance and flexibility for MIL-STD-1553A and B Notice II on the VMEbus. |
| QVXI-1553X | The QVXI-1553X provides new levels of performance and flexibility for MIL-STD-1553A and B Notice II on a C-size card. |
| R15-AMC Interface | The R15-AMC delivers high performance and excellent flexibility for MIL-STD-1553A/B Notice II on an AMC module. |
| RPCC-D1533 | 1 or 2 channel MIL-STD-1553 PCMCIA/PCCARD Module |
| QVXI2-1553X | 1, 2 or 4 channel MIL-STD-1553 VXI Module |
| VME-1553 | The VME-1553 provides new levels of performance and flexibility for MIL-STD-1553A and B Notice II on the VMEbus. |
